Most Powerful on the Market — 50,000 RPM MAX WITH POWER TO SPARE AND SECOND TO NONE!!!

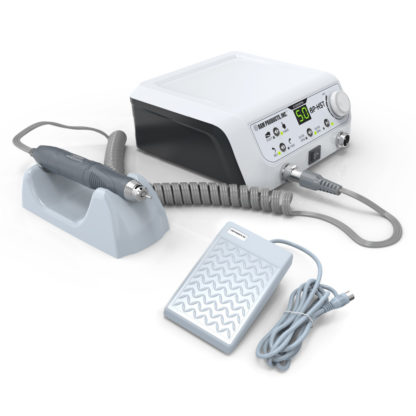

Ram – BP-HST Brushless Micro motor Set w/ Slim Handpiece
Kit includes :
BP-HST CONTROL BOX
BP50 SLIM HANDPIECE FEATURES:
BP50 Slim Handpiece is 20% lighter offering superior comfort while only 10% less torque and still 3 times the torque of brush type motors. Don’t be fooled by the slim front end as it has the same exact spindle and bearings – only a slightly different motor. BP50 Slim combines the best of brushless power and comfort in size.
1/8″ reducer to 3/32″ included at no charge.
VARIABLE FOOT PEDAL FEATURES:
• This foot pedal will allow the user to adjust or vary the speed
The power supply has 30% more power than the BP-50 units, so the handpiece has all the power you need.
Accepts all BP-50 Handpieces
Brushless Micromotor features high torque and pure power technology which increases the comfort and productivity of its user by effort-free performance. Brushless features a unique motor design which is totally sealed along with a powerful magnet motor shaft in a sealed motor case that virtually eliminates noise and vibrations. Brushless Motor Technology is unique to every brand and RAM PRODUCTS is proud to break the price barrier, making brushless more affordable.
BP-HST CONTROL BOX FEATURES:
• Large Toroid Transformer
• 30% More Power than BP50
• Dual Handpiece Output
• 0-30,000rpm Low Speed Range for Larger Bits and Truflex and 0-50,000rpm for High Speed Mode
• Precise Digital Speed Control
• LED Functions and Display
• Forward or Reverse Rotation
• Standby Mode for Handpiece
• Hand or Foot Control
• Speed Dial Can Limit Top Speed for Safety
• Secure Locking Handpiece Ring
• Stylish and Ergonomical
BP-HST CONTROL BOX SPECIFICATIONS:
• Input: AC110V 60Hz
• Output: DC 0-36V
• Max. Amp: 5A
• Rotate Speed: 1,000-50,000rpm
• Power: 50W
• Dimension: 9.5” Length x 7.1” Width x 3.3” Height
• Weight: 7.06lbs.
BP50 SLIM HANDPIECE SPECIFICATIONS:
• Torque: 10.2Ncm
• Size: 5.75” x 0.95” x 0.67”
• Net Weight: 5.68oz.
VARIABLE FOOT PEDAL SPECIFICATIONS:
• 6.75” Length x 4” Width x 2.75” Height
