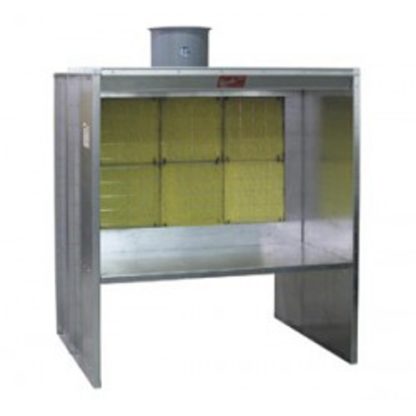

Paasche – 5′ Shelf Type Spray Booth FABSF-5-T3

$2,395.95

SKU: PA-FABSF-5-T3 Category:

Description

Extra shipping charges apply and need to be quoted

Weight: 680 lbs
Dimensions: 9 × 40 × 87 in

BE-54-18 VENT RING IS NEEDED TO CONNECT EXHAUST DUCT.

5′ Shelf Type Spray Booth

Working Dimensions: 5’W x 3’D x 4’6″H

Over All Dimensions: 5’4″W x 5’2″D x 8’2″H

The Booth Includes:

18 inch Fan with Sparkless Aluminum Blade

1/2 H.P. Totally Enclosed Motor 230/460 Volt, 3 Phase

3,090 CFM @ 1/4″SP or 137 FPM

4′ Fluorescent Light Fixture(class I div II) – Bulbs Not Included

Belt Guard

Draft Gauge

Two Sets of Paint Filters

Full set of assembly instructions and hardware

Conforms to OSHA, NFPA and EPA Regulations

Booth must be assembled and hardwired (switch to be supplied by electrician)

Optional Items:

AG-20 Case of 50 Filters

BE-54-18 Duct Flange (Recommended for all booths)

A-18 3 Foot Section of Duct

AD-18 3 Foot Section of Duct with Clean Out Door

B-1/2-18 90 Degree Elbow

EF-18 Flat Roof Flange (Roof)
WC-18 Weather Canopy / Damper (Roof)

S-18 Wall Shutter (Side Wall)

Additional information

Weight 44 lbs
